As a specialized manufacturer of medical-grade titanium materials, we understand that every titanium rod and plate we deliver ultimately becomes an implant carrying hope within patients' bodies. From raw material formulation to smelting, forging, rolling, and machining, we employ rigorous processes and stringent quality control to create reliable products designed for long-term coexistence with the human body, thereby enhancing patients' quality of life.

Item

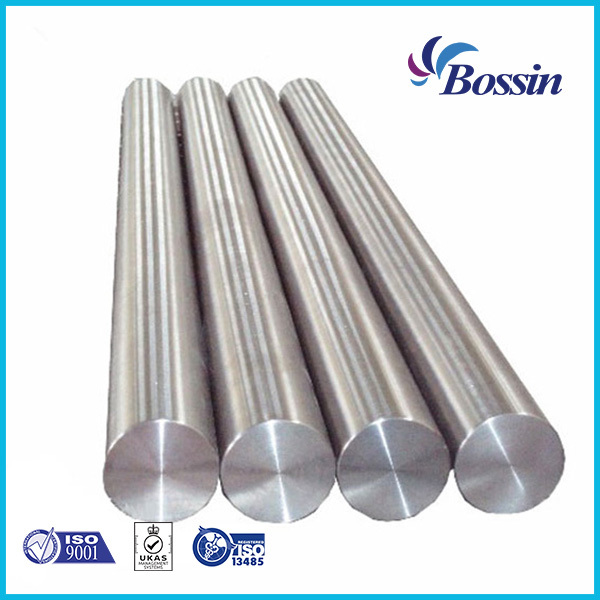

Titanium Bar,Titanium Rod for medical

Grade

GR1, GR2, GR3, GR4, GR5 ELI, Ti 6AL4V Eli, GR23

Standard

ASTM F136,  ISO5832-3，ASTM F67, ISO5832-2

Specification

Dia1.0–Dia100mm × Length≤6000mm

Titanium Bars for Bone Screws：Φ3.5；Φ4.0；Φ4.5；Φ5.0；Φ5.5；Φ6.0；Φ8.0；Φ10.0

Titanium Bars for Spine：Φ13.5；Φ14.0；Φ14.2；Φ15.0；Φ16.0；Φ17.0

Titanium Bars for Bone Joint：Φ30.0；Φ35.0；Φ40.0；Φ50.0；Φ55.0；Φ60.0；Φ65.0

Titanium Bars for Dental Implants：Φ3.0-20.0mm

Dental Titanium Disc：Ф98*10-25mm，220*150*10-25mm

High-accuracy

H6 H7 H8 H9, tolerance 0.005mm

Certificate

ISO 9001:2008, ISO13485,EN10204 3.2 ,SGS The Third-Party Test Report

Microstructure

According to ETTC-2, A1-A5

Sample

Free sample — Small quantity samples are available at any time

Stock available

Direct Delivery of Stock Goods, Large Titanium bar Stock available,Stock list as below,
ASTM F136 Dia4.0mm,Dia6.0mm,Dia8.0mm,Dia10mm,Dia12mm,Dia14mm, Dia16mm, Dia18mm,Dia20mm in stock

Application

Medical, Surgical Implants, Dental Implants, Orthopedic implants, Bone Screws, Bone Joint

We offer

We have complete set of production equipment for titanium bars, covering the entire process from raw materials to finished products.

We are the only local manufacturer equipped with a continuous rolling and precision rolling line for titanium rods, combined with Cold Drawing equipment, which have significantly enhanced production efficiency and product quality, The yield rate of titanium rods has increased by 5–10%.

3000 tons production capability annually.

Professional Third-Party Inspection Services.  SGS Test Certificate

Quality Assurance

According to globally recognized standards, such as ASTM, AMS, ASME,JIS,MIL…

Provide third-part inspection reports. SGS Inspection certificate before shipment.

Chemical composition, Mechanical properties, Microstructure,Macrostructure,Ultrasonic Inspection,Surface Contamination，Hardness is strictly controlled.

ISO Quality Management System,ISO13485 certificate

     Data Sheet

Packaging & Delivery
